BUILDING BLOCK - Concrete Hardware System

Synonym	Physical Artifact
Description	Abstract Concept A Concrete Hardware System is a man made tangible artifact which exposes Hardware Capability(ies) and can produce and react to Physical Outcome Events. A Concrete Hardware System performs System Processes and participates to System Processes or to Business Processes. A Concrete Hardware System can embed Computing Systems. Together with its embedded Computing Systems, a Concrete Hardware System can also produce and react to Information Outcome Events. A Concrete Hardware System may be based on a set of Hardware Technology(ies). Examples: - Connected Drone with Online Payment App. - 3D printer. - Automated Guided Vehicles (AGVs) - Connected fridge providing an ordering Functionality and of course a freezing Hardware Capability. - Production equipment in an assembly line (metal forging machine) - Car Systemic Levels of Concrete Hardware System: a Concrete Hardware System is either a Hardware Equipment or a Hardware Configuration
External references	OMG - UAF - System, OpenGroup - OAA - Hardware
Super Types	Business System (from partition: Artifact Nature of Business System) Hardware System Physical Business Agent
Functional Domain	Hardware Functional Architecture
Dictionary	Dictionary of SysFEAT concepts
Lexical Scope	Architecture Container
Framework Mapping	DoDAF Mapping : Materiel SysFEAT Outcome Centric Model : PhysicalAsset

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

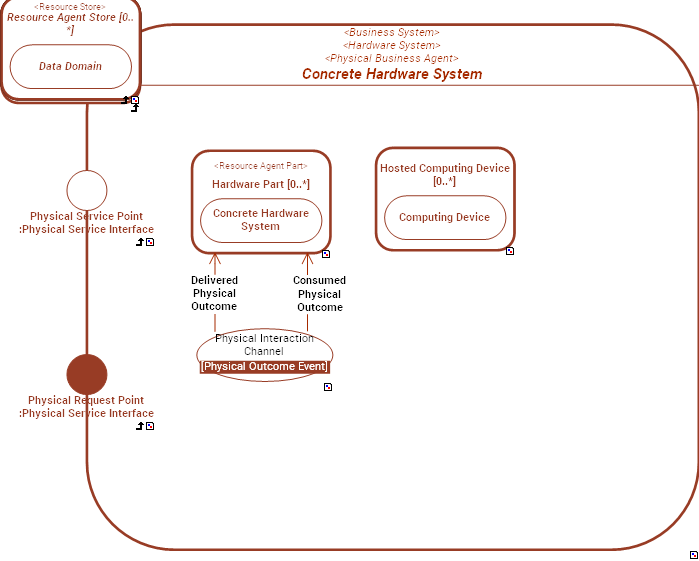

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Required Hardware Technology	[*..0]	Hardware Technology	Concrete Hardware System	Set of Hardware Technology(ies) on which a Concrete Hardware System is based.
Physical Interaction Channel	[*..0]	Physical Outcome Event	Concrete Hardware System
Hosted Computing Device	[*..0]	Computing Device	Concrete Hardware System
Hardware Part	[*..0]	Concrete Hardware System	Concrete Hardware System
Specialized Business System	[*..0]	Business System	Business System
Enabler Technology System	[*..0]	Technology System	Business System
Performed Business System Scenario	[*..0]	Business System Interaction Process	Business System
Performed System Process	[*..0]	System Process	Business System	An application process performance establishes the relationship between an application and the some dynamic behaviors described as BPMN processes.
Fulfilled Physical Capability	[*..0]	Physical Capability	Physical Business Agent
Physical Service Point	[1..1]	Physical Service Interface	Physical Business Agent
Physical Request Point	[1..1]	Physical Service Interface	Physical Business Agent
Physical Resource Agent Part	[*..0]	Physical Business Agent	Physical Business Agent	Structural composition of a Physical Business Agent.
Fulfilled Requirement	[*..0]	Requirement	Business System Asset
Fulfilled Functionality	[*..0]	Functionality	Business System Asset
System Rule Enforcement	[*..0]	System Rule	Business System Asset
Business System Asset Part	[*..0]	Business System Asset	Business System Asset
Resource Rule Enforcement	[*..0]	Resource Rule	Resource Operating Asset
Realized Agent	[*..0]	Agent	Agent
Life Start	[*..0]	Agent Life Cycle Event	Agent	A Life Start is a Start Type that denotes the type of event that signifies the beginning of an Agents existence.
Life End	[*..0]	Agent Life Cycle Event	Agent	A Life End is an End Type that denotes the type of event that signifies the end of an Agents existence.
Hierarchical Member	[*..0]	Building Block	Aggregate Block	A Hierarchical Member is an Aggregate Member that is also a Block Lexical Scope for the Building Block it aggregates: it relates its aggregated block by nesting (see Nesting Relationship).Hierarchical Members are used to build hierarchical structures of Building Blocks, in constrast to Block Members which are used to build network structures of Building Blocks.
Block Member	[*..0]	Building Block	Aggregate Block	A Block Member is an Aggregate Member that aggregates its releated Building Block by reference (see Referencing Relationship).Block Members are used to build network structures of Building Blocks while Hierarchical Members are used to build hierarchical structures of Building Blocks.
