CLASS OF CLASS OF INDIVIDUAL - Technology System

Description

Abstract Concept
A Technology System is a Resource Agent which produces and reacts to Technology Outcome Events through Technology Interfaces. Technology Systems are enablers of Business Systems. They do not directly deliver Business Outcome Events to internal or external customers. They deliver Technology Outcome Events required by Business Systems to operate.

Artifact Nature of Technology System: a Technology System is either a Networking System, a Hardware Technology, a Configured Technology System or a Software Technology System

Functional Domain: EA Pattern - Technology Operating Pattern

The EA Pattern - Technology Operating Pattern is used to describe the common features of Technology Operating Assets.

External references

OMG - UAF - Technology

OpenGroup - ArchiMate - Technology Internal Active Structure Element

OpenGroup - OAA - Digital Technology

Super Types

Resource Agent (from partition: Operational Role of Resource Agent)

Technology Operating Asset (from partition: Structural Partition of Technology Operating Asset)

Dictionary

Dictionary of SysFEAT concepts

Lexical Scope

Architecture Container

Framework Mapping

UAF - Strategy : Technology
UAF - Resource Views : technology

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Technology Service Point	[1..1]	Technology Interface	Technology System
Technology Request Point	[1..1]	Technology Interface	Technology System
Technology Connection	[*..0]	Technology Interface	Technology System
Technology System Member	[*..0]	Technology Operating Asset	Technology System
Fulfilled Technology Capability	[*..0]	Technology Capability	Technology Operating Asset
Technology Rule Enforcement	[*..0]	Technology Rule	Technology Operating Asset
Specialized Business Operating Agent	[*..0]	Resource Agent	Resource Agent
Provided Resource Interface	[*..0]	Resource Service Interface	Resource Agent
Consumed Resource Interface	[*..0]	Resource Service Interface	Resource Agent
Resource Connection	[*..0]	Resource Service Interface	Resource Agent
Performed Resource Scenario	[*..0]	Resource Interaction Process	Resource Agent	A Performed Resource Scenario is a Resource Interaction Process operated by a Resource Agent.
Performed Resource Process	[*..0]	Resource Action Process	Resource Agent	A Performed Resource Process is a Resource Action Process operated by a Resource Agent.
Resource Store	[*..0]	Information Domain	Resource Agent
Specialized Technology Asset	[*..0]	Technology Functional Asset	Technology Functional Asset
Technology Risk	[*..0]	Technology Risk Type	Technology Functional Asset
Realized Agent	[*..0]	Agent	Agent
Life Start	[*..0]	Agent Life Cycle Event	Agent	A Life Start is a Start Type that denotes the type of event that signifies the beginning of an Agents existence.
Life End	[*..0]	Agent Life Cycle Event	Agent	A Life End is an End Type that denotes the type of event that signifies the end of an Agents existence.
Realized Business Operating Asset	[*..0]	Resource Operating Asset	Resource Operating Asset
Temporal Sequencing Type	[*..0]	Temporal Bounding Type	Class of Bounded Individual
Hierarchical Member	[*..0]	Building Block	Aggregate Block	A Hierarchical Member is an Aggregate Member that is also a Block Lexical Scope for the Building Block it aggregates: it relates its aggregated block by nesting (see Nesting Relationship).Hierarchical Members are used to build hierarchical structures of Building Blocks, in constrast to Block Members which are used to build network structures of Building Blocks.
Block Member	[*..0]	Building Block	Aggregate Block	A Block Member is an Aggregate Member that aggregates its releated Building Block by reference (see Referencing Relationship).Block Members are used to build network structures of Building Blocks while Hierarchical Members are used to build hierarchical structures of Building Blocks.

SERIALIZATION FORMAT

TEXTUAL SYNTAX RDF

File: 0cbd1fa663fe18ac.rdf

SEMANTIC TAXONOMY

Sub-Types Super-Types

Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.

BORDERS

Name	Super type	Border Type
Operating Entry	Bounded Aggregate::Entry Border	Operating Connection
Operating Exit	Bounded Aggregate::Exit Border	Operating Connection
Technology Request Point		Technology Interface
Technology Service Point		Technology Interface

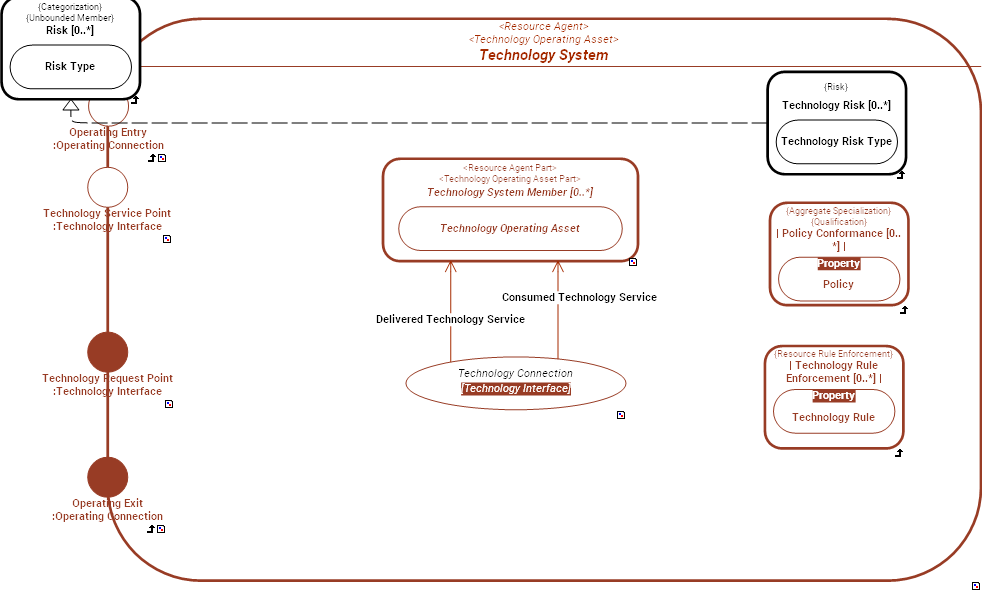

INTERNAL STRUCTURE

../images/0cbd1fa663fe18ac_7e1a9b1066f55163_i.png

CONNECTORS

Connector	Source	Target	Connector Type	Description
Technology Connection	Technology System Member. Technology Request Point	Technology System Member. Technology Service Point	Technology Interface	Abstract Connection
