CLASS OF CLASS OF INDIVIDUAL - Class of Bounded Individual

Synonym

Bounded Individual Type

Description

Abstract Concept

A Class of Bounded Individual is a Class of Individual which denotes Bounded Individuals that have a proper life cycle, bounded by Temporal Bounding Types.

Class of Bounded Individual is the powertype of Bounded Individual. It means that all sub-types of Bounded Individual are instances of Class of Bounded Individual.

Examples:

- Car, , Application,

- A Process Type (Action Process) such as the registration process used at the Oackland digital hospital during the COVID-19 pandemic.

Counterexamples:

- Project is not a Class of Bounded Individual because its instances have a spatio-temporal extent. Project is a subtype of Bounded Individual.

- Capability is not a Class of Bounded Individual. It is a Class of Property.

Structural Partition of Class of Bounded Individual: a Class of Bounded Individual is either a Whole Life Class or a State Class

Functional Domain: 4D Composite Knowledge Graph

The purpose of the 4D Composite Knowledge Graph is to layer structured spatio-temporal concepts onto the Reflexive Knowledge Graph,

External references

ISO 15926 - ClassOfArrangedIndividual

OMG - KerML - Class

Super Types

Bounded Aggregate

Class of Individual (from partition: Structural Partition of Class of Individual)

Power Type

Class of Class of Bounded Individual

Power Type of

Bounded Individual

Dictionary

SysFEAT Upper Ontology

Framework Mapping

UFO - A - Endurant : Substantial Type

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
PowerTyped by Class of Class of Bounded Individual	[1..1]	Class of Class of Bounded Individual	Class of Bounded Individual
Specialized Class of Bounded Individual	[*..0]	Class of Bounded Individual	Class of Bounded Individual
Categorization	[*..0]	Category	Class of Bounded Individual	Categorization is a Classification of a Class of Bounded Individual by a Family of Class called Category.
Qualification	[*..0]	Class of Property	Class of Bounded Individual	A Specialization from a Class of Bounded Individual to a Class of Property that asserts all members of the Class of Bounded Individual have the Class of Property.
Start Type	[*..0]	Temporal Bounding Type	Class of Bounded Individual
End Type	[*..0]	Temporal Bounding Type	Class of Bounded Individual
Temporal Sequencing Type	[*..0]	Temporal Bounding Type	Class of Bounded Individual
Aggregate Specialization	[*..0]	Class of Bounded Individual	Class of Bounded Individual	An Aggregate Specialization is a Specialization that is refied as an Unbounded Member of a Class of Bounded Individual.Example:. The enforcement of a rule in a process (Rule Enforcement) is a refied Specialization.
Aggregate Composition Type	[*..0]	Class of Bounded Individual	Class of Bounded Individual	An Aggregate Composition Type is a reified flavor of Composition Type whereby the referenced Class of Individual is aggregated in its parent (whole) Class of Bounded Individual.Example:1) A Process Step is the reification of the composition of a child process in a parent process.2)
Hierarchical Member	[*..0]	Building Block	Aggregate Block	A Hierarchical Member is an Aggregate Member that is also a Block Lexical Scope for the Building Block it aggregates: it relates its aggregated block by nesting (see Nesting Relationship).Hierarchical Members are used to build hierarchical structures of Building Blocks, in constrast to Block Members which are used to build network structures of Building Blocks.
Block Member	[*..0]	Building Block	Aggregate Block	A Block Member is an Aggregate Member that aggregates its releated Building Block by reference (see Referencing Relationship).Block Members are used to build network structures of Building Blocks while Hierarchical Members are used to build hierarchical structures of Building Blocks.
Enumerated Definition	[1..1]	Whole Life Class	Class of Bounded Individual
Enumerated Definition	[1..1]	State Class	Class of Bounded Individual

SERIALIZATION FORMAT

TEXTUAL SYNTAX RDF

File: 3492c53e619642ed.rdf

SEMANTIC TAXONOMY

Sub-Types Super-Types

Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.

BORDERS

Name	Super type	Border Type	Description
End Type	Bounded Aggregate::Exit Border	Temporal Bounding Type
Start Type	Bounded Aggregate::Entry Border	Temporal Bounding Type

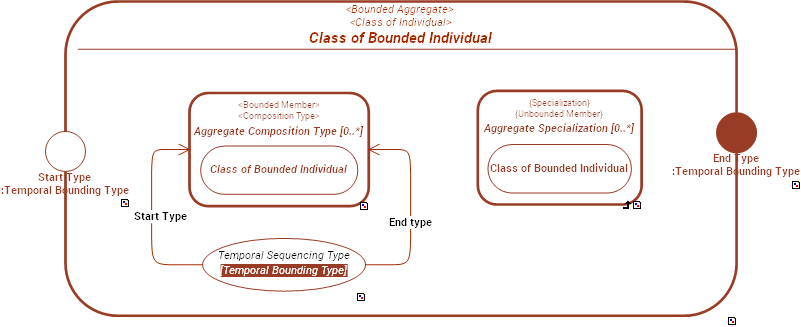

INTERNAL STRUCTURE

../images/3492c53e619642ed_267b6ab86675a197_i.png

CONNECTORS

Connector	Source	Target	Connector Type	Description
Temporal Sequencing Type	Aggregate Composition Type. End Type	Aggregate Composition Type. Start Type	Temporal Bounding Type	Abstract Connection
