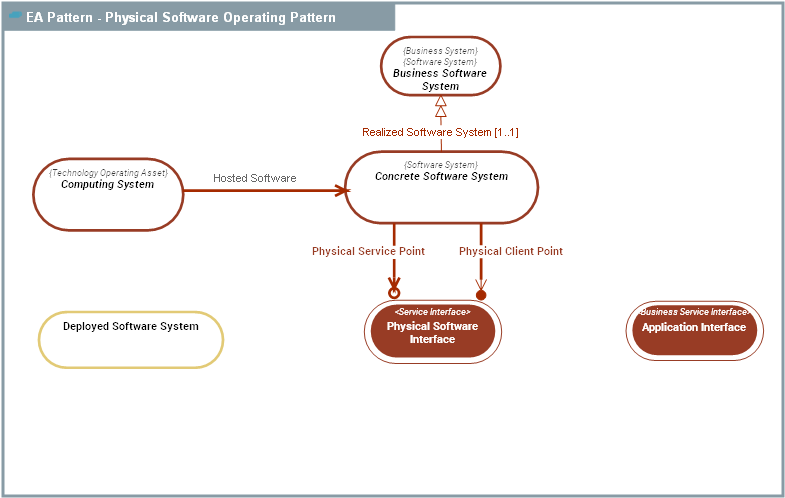

Description	The EA Pattern - Physical Software Operating Pattern domain provides abstractions shared by all physical software artifacts.
Dictionary	Dictionary of SysFEAT concepts
Parent Domain
Domain dependencies	EA Pattern - Technology Operating Pattern SOF - Business Software Operating Model SOF - Resource System Operating Pattern (R-SOF) Software Technology ArcOps System Operating Framework - SOF

Concept	Description
Business Software System	A Business Software System is a Business System used by Business Operations, that represents all granularities of software - ranging from MicroServices to enterprise wide Application Systems - used by Business Operations. All Business Software Systems share the following characteristics: 1) They provide Functionalitys. 2) They expose APIs (Application Interfaces) through which they deliver Information Outcome Events. 3) They handle datastores defined by Physical Data Domains. 4) They perform and participate to System Processes. References: OMG - UAF - Software OpenGroup - ArchiMate - Application Internal Active Structure Element OpenGroup - ArchiMate - Layer - Application Layer UCF Glossary - Software Asset
Computing System	A Computing System is a system that can host and run software code ( Application code or Software Technology code) and to host data. Examples: Computer Devices, Computer Servers, Cloud Services.
Concrete Software System	A Concrete Software System is a Software System Category that is the concrete implementation of an Business Software System.

Concept	Description
Application Interface	An Application Interface is a Business Service Interface that occurs between Business Software Systems. The interface is described by messages exchanged between endpoints (provider, consumer..). References: EIP - messaging Martin Fowler - API Design Martin Fowler - Richardson Maturity Model Microsoft - Architecture Design - RESTful web API design OpenGroup - ArchiMate - Application Service OpenGroup - IT4IT - Defining Service Reference Architecture
Deployed Software System
Physical Software Interface	An Physical Software Interface is a physical specification of an Application Interface to which it adds the following physical characteristics: 1) The software communication protocol which defines the format of the data, the procedures for error handling, and the protocols for data transfer. Examples of software communication protocols include HTTP, SOAP, gRPC, 2) Potential specific target port number. 3) Optional restrictions on source port number to use . 4) Transport protocol (TCP/UDP). Physical Software Interfaces can also represent lower lever APIs supported by Software Technology Systems such as DHCP, SMTP, IMAP, LDAP.
