CLASS OF CLASS OF INDIVIDUAL - Software Technology System

Description

Abstract Concept

A Software Technology System is a Technology System that provides Software Technology Capabilitys to other Business Software Systems by producing and reacting to Software Technology Outcome Event.

Software Technology Systems are enabler systems. They do not directly deliver Business Outcome Events to internal or external customers.

Systemic Levels of Software Technology System: a Software Technology System is either a Software Technology Stack, a Software Technology or a Cloud Service

Functional Domain: Software Technology ArcOps

The Software Technology ArcOps domain describes a set of concepts used in practices that combines Software Technology System development (Dev) and Software Technology System operations (Ops).

Super Types

Concrete Software System (from partition: Operational Role of Concrete Software System)

Technology System (from partition: Artifact Nature of Technology System)

Dictionary

Dictionary of SysFEAT concepts

Lexical Scope

Architecture Container

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

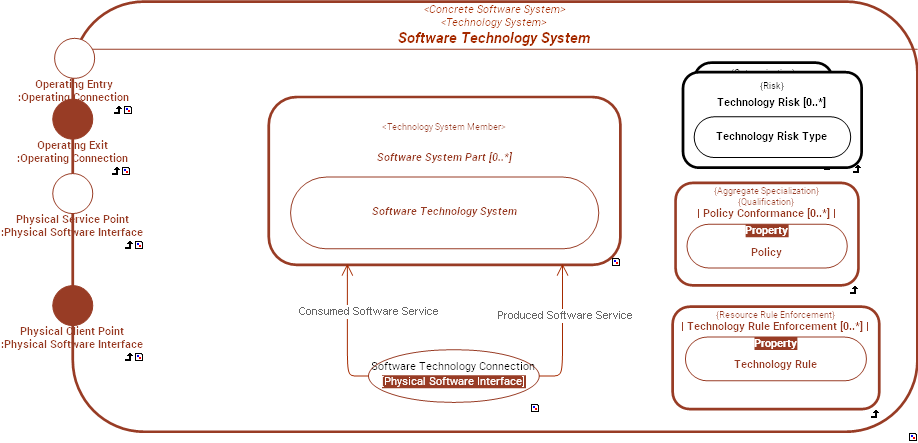

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Software Technology Connection	[*..0]	Physical Software Interface	Software Technology System
Software System Part	[*..0]	Software Technology System	Software Technology System	Kind of artifact that provides technical functionalities to other artifacts and that is not directly used by humans to achieve their duty.
Specialized Business Operating Agent	[*..0]	Resource Agent	Resource Agent
Provided Resource Interface	[*..0]	Resource Service Interface	Resource Agent
Consumed Resource Interface	[*..0]	Resource Service Interface	Resource Agent
Resource Connection	[*..0]	Resource Service Interface	Resource Agent
Performed Resource Scenario	[*..0]	Resource Interaction Process	Resource Agent	A Performed Resource Scenario is a Resource Interaction Process operated by a Resource Agent.
Performed Resource Process	[*..0]	Resource Action Process	Resource Agent	A Performed Resource Process is a Resource Action Process operated by a Resource Agent.
Resource Store	[*..0]	Information Domain	Resource Agent
Specialized Technology Asset	[*..0]	Technology Functional Asset	Technology Functional Asset
Technology Risk	[*..0]	Technology Risk Type	Technology Functional Asset
Realized Business Operating Asset	[*..0]	Resource Operating Asset	Resource Operating Asset
Realized Agent	[*..0]	Agent	Agent
Life Start	[*..0]	Agent Life Cycle Event	Agent	A Life Start is a Start Type that denotes the type of event that signifies the beginning of an Agents existence.
Life End	[*..0]	Agent Life Cycle Event	Agent	A Life End is an End Type that denotes the type of event that signifies the end of an Agents existence.
Temporal Sequencing Type	[*..0]	Temporal Bounding Type	Class of Bounded Individual
Hierarchical Member	[*..0]	Building Block	Aggregate Block	A Hierarchical Member is an Aggregate Member that is also a Block Lexical Scope for the Building Block it aggregates: it relates its aggregated block by nesting (see Nesting Relationship).Hierarchical Members are used to build hierarchical structures of Building Blocks, in constrast to Block Members which are used to build network structures of Building Blocks.
Block Member	[*..0]	Building Block	Aggregate Block	A Block Member is an Aggregate Member that aggregates its releated Building Block by reference (see Referencing Relationship).Block Members are used to build network structures of Building Blocks while Hierarchical Members are used to build hierarchical structures of Building Blocks.

SERIALIZATION FORMAT

TEXTUAL SYNTAX RDF

File: 0463ea9a63fd8b6c.rdf

SEMANTIC TAXONOMY

Sub-Types Super-Types

Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.

BORDERS

Name	Super type	Border Type	Description
Operating Entry	Bounded Aggregate::Entry Border	Operating Connection
Operating Exit	Bounded Aggregate::Exit Border	Operating Connection
Physical Client Point	Technology System::Technology Request Point	Physical Software Interface	A technical output port is a point that allows asking to open a communication line from a technical architecture or an application technical area and that complies with a specified communication protocol (SMTP, HTTP, etc.).
Physical Service Point	Technology System::Technology Service Point	Physical Software Interface	A Physical Service Point is a connection point allowing opening a communication to a technical architecture or an application technical area that complies with a specified communication protocol (SMTP, HTTP, etc.).
