CLASS OF CLASS OF INDIVIDUAL - Business Software System

Description

Abstract Concept

A Business Software System is a Business System used by Business Operations, that represents all granularities of software - ranging from MicroServices to enterprise wide Application Systems - used by Business Operations.

All Business Software Systems share the following characteristics:

1) They provide Functionalitys.

2) They expose APIs (Application Interfaces) through which they deliver Information Outcome Events.

3) They handle datastores defined by Physical Data Domains.

4) They perform and participate to System Processes.

Systemic Levels of Business Software System: a Business Software System is either a Software Module or an Application System

Functional Domain: SOF - Business Software Operating Model

The SOF - Business Software Operating Model domain provides concepts and abstractions shared by all Business Software Systems.

External references

OMG - UAF - Software

OpenGroup - ArchiMate - Application Internal Active Structure Element

OpenGroup - ArchiMate - Layer - Application Layer

UCF Glossary - Software Asset

Super Types

Business System (from partition: Artifact Nature of Business System)

Software System Category (from partition: Conceptualization Levels of Software System Category)

Dictionary

Dictionary of SysFEAT concepts

Lexical Scope

Architecture Container

Framework Mapping

ArchiMate - Application Layer : Application Internal Active Structure Element
ArchiMate - Application Layer : Application Internal Active Structure Element
UAF - Resource Views : Software
UAF - Operational Views : Software
UAF - Strategy : Software

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Specialized Software System	[*..0]	Business Software System	Business Software System
Realized Logical System	[*..0]	Logical Software System	Business Software System
API Service Point	[1..1]	Application Interface	Business Software System
API Request Point	[1..1]	Application Interface	Business Software System
Software Connection	[*..0]	Application Interface	Business Software System	An Interaction represents a contract between entities in a specific context inside or outside a company. These entities can be organizational units, activities, or processes.The content of this contract is described in a protocol.
Software Part	[*..0]	Business Software System	Business Software System	A Software Part represents the role that a Business Software System plays in the context of a parent Business Software System.
Physical data store	[*..0]	Physical Data Domain	Business Software System
Performed Software System Scenario	[*..0]	Software System Scenario	Business Software System
Fulfilled Requirement	[*..0]	Requirement	Business System Asset
Fulfilled Functionality	[*..0]	Functionality	Business System Asset
System Rule Enforcement	[*..0]	System Rule	Business System Asset
Business System Asset Part	[*..0]	Business System Asset	Business System Asset
Realized Agent	[*..0]	Agent	Agent
Life Start	[*..0]	Agent Life Cycle Event	Agent	A Life Start is a Start Type that denotes the type of event that signifies the beginning of an Agents existence.
Life End	[*..0]	Agent Life Cycle Event	Agent	A Life End is an End Type that denotes the type of event that signifies the end of an Agents existence.
Resource Rule Enforcement	[*..0]	Resource Rule	Resource Operating Asset
Temporal Sequencing Type	[*..0]	Temporal Bounding Type	Class of Bounded Individual
Hierarchical Member	[*..0]	Building Block	Aggregate Block	A Hierarchical Member is an Aggregate Member that is also a Block Lexical Scope for the Building Block it aggregates: it relates its aggregated block by nesting (see Nesting Relationship).Hierarchical Members are used to build hierarchical structures of Building Blocks, in constrast to Block Members which are used to build network structures of Building Blocks.
Block Member	[*..0]	Building Block	Aggregate Block	A Block Member is an Aggregate Member that aggregates its releated Building Block by reference (see Referencing Relationship).Block Members are used to build network structures of Building Blocks while Hierarchical Members are used to build hierarchical structures of Building Blocks.

SERIALIZATION FORMAT

TEXTUAL SYNTAX RDF

File: d6cd02865ab966e8.rdf

SEMANTIC TAXONOMY

Sub-Types Super-Types

Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.

BORDERS

Name	Super type	Border Type	Description
API Request Point	Business Agent::Business Request Point	Application Interface
API Service Point	Business Agent::Business Service Point	Application Interface

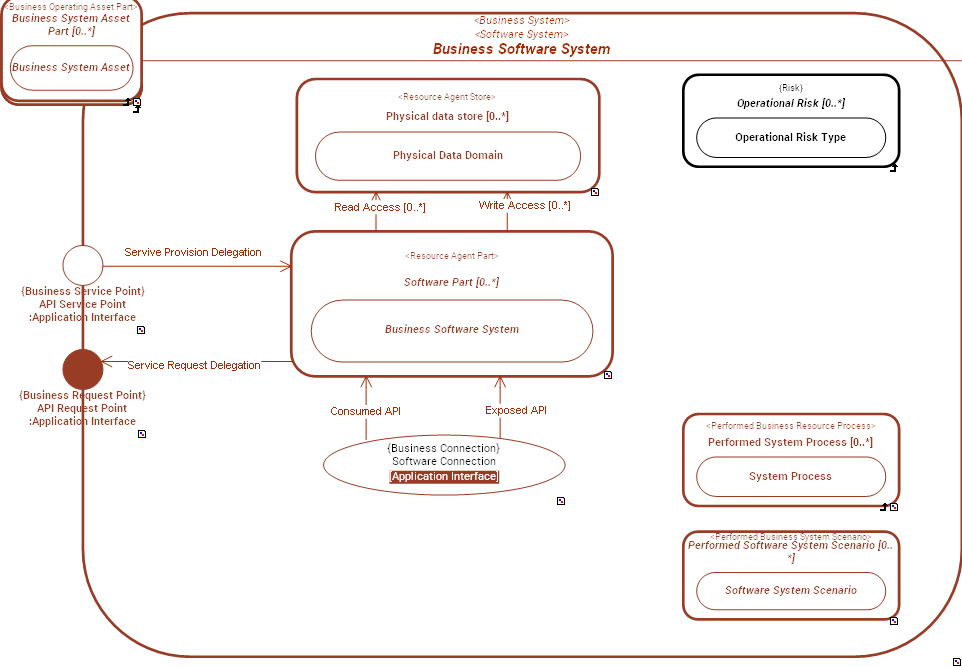

INTERNAL STRUCTURE

../images/d6cd02865ab966e8_173f4bb85eb8c3dd_i.png

CONNECTORS

Connector	Source	Target	Connector Type	Description
Software Connection	Software Part. API Request Point. Logical Request Point	Software Part. API Service Point. Logical Service Point	Application Interface	An Interaction represents a contract between entities in a specific context inside or outside a company. These entities can be organizational units, activities, or processes. The content of this contract is described in a protocol.
