CLASS OF CLASS OF INDIVIDUAL - Assurance Case

Description

Abstract Concept

An Assurance Case is a claim that a particular enterprise asset or group of Functional Asset adequately mitigates certain identified Risk Types by means of appropriated Control Measures.

An Assurance Case shall provide confidence that the concerned assets will function as intended in their environment of use.

Privacy Processing Activity(ies), Data Lineages are examples of Assurance Cases .

Functional Domain: Operational Assurance

The Operational Assurance domain provides a framework for systematic and evidence-based methodologies for ensuring that an enterprise's processes, systems, and services consistently meet defined trustworthiness criteria across multiple domains, including privacy, safety, security, business continuity, and quality. It establishes a structured framework for:

External references

NIST - Assurance Case

OMG - SACM : AssuranceCasePackage

Super Types

Initiative Instrument

Dictionary

Dictionary of SysFEAT concepts

Lexical Scope

Assurance System

Framework Mapping

UAF - Motivation : Assurance Case

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Constraining Policy	[*..0]	Policy	Assurance Case	Policy covered by the Assurance Case.
Applied Control Measure	[*..0]	Control Measure	Assurance Case	Set of Control Measures that are claimed to be applied in the context of an Assurance Case.
Enforced Directive	[*..0]	Control Directive	Assurance Case	Set of Control Directives that the Assurance Case ensures that they are enforced in the Involved Asset of the Assurance Case.
Involved Asset	[*..0]	Functional Asset	Assurance Case	Functional Asset involved in an Assurance Case.
Mitigated Risk	[*..0]	Risk Type	Assurance Case	A Mitigated Risk is a potential threat or danger that has been reduced in severity, likelihood, or impact through deliberate actions or strategies.
Relationship	[*..0]	Entity	Entity	A Relationship is the reification of a Kuratowskis ordered pair of the Elementary Graph, as an Element that represents a relationship.It formalizes relationships betwen Entitys.Relationships are nested within their source Entity. (principle of locality).
Referencing Relationship	[*..0]	Entity	Entity	A Referencing Relationship is a Relationship that points at its target Entity through Reference Adjacency.
Dependency Relationship	[1..1]	Entity	Entity	A Dependency Relationship is a Relationship that specifies the existential dependency of the sourceRelationship on its target Relationship.The cardinality to the target Entity is [1..1].
Non-Dependency Relationship	[*..0]	Entity	Entity	A Non-Dependency Relationship is a Relationship that specifies that the existence the source Entity doesnt depend on the existence of its target Entity.The cardinality to the target Entity is [0..*].

SERIALIZATION FORMAT

TEXTUAL SYNTAX RDF

File: 07ca19e95dd854e9.rdf

SEMANTIC TAXONOMY

Sub-Types Super-Types

Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.

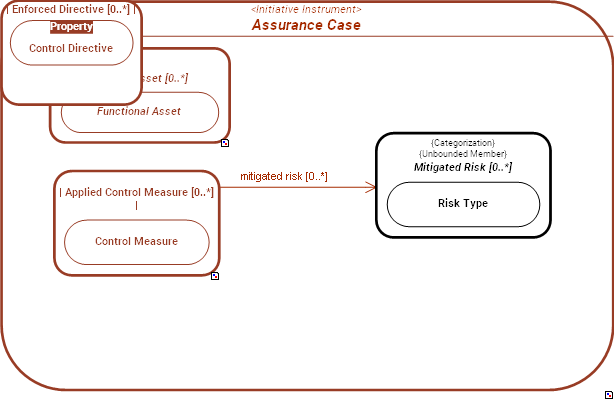

INTERNAL STRUCTURE

../images/07ca19e95dd854e9_9152e5115ed760c4_i.png
