BUILDING BLOCK - Control Measure

Description	Abstract Concept A Control Measure is a Resource Operating Asset (agent or behavior) that is taken to prevent, eliminate or reduce the occurrence of a hazard that has been identified in the context of an Assurance Case.
External references	OpenGroup - TOGAF - Enterprise MetaModel - Control, UCF Glossary - Control
Super Types	Control Asset Resource Operating Asset (from partition: Operational Assurance Categorization)
Dictionary	Dictionary of SysFEAT concepts
Lexical Scope	Architecture Container
Framework Mapping	TOGAF - Enterprise Metamodel Mapping : Control Measure

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Control Measure Category	[*..0]	Control Measure Category	Control Measure
Enforced Control Directive	[*..0]	Control Directive	Control Measure
Specialized Resource Operating Asset	[*..0]	Resource Operating Asset	Resource Operating Asset
Realized Business Operating Asset	[*..0]	Resource Operating Asset	Resource Operating Asset
Fulfilled Resource Capability	[*..0]	Resource Capability	Resource Operating Asset	Resource Capability(ies) fulfilled by a Resource Operating Asset.
Resource Rule Enforcement	[*..0]	Resource Rule	Resource Operating Asset
Resource Operating Asset Part	[*..0]	Resource Operating Asset	Resource Operating Asset
Realized Operating Asset	[*..0]	Operating Asset	Operating Asset
Operating Entry	[*..0]	Operating Connection	Operating Asset
Operating Exit	[*..0]	Operating Connection	Operating Asset
Hierarchical Member	[*..0]	Building Block	Aggregate Block	A Hierarchical Member is an Aggregate Member that is also a Block Lexical Scope for the Building Block it aggregates: it relates its aggregated block by nesting (see Nesting Relationship).Hierarchical Members are used to build hierarchical structures of Building Blocks, in constrast to Block Members which are used to build network structures of Building Blocks.
Block Member	[*..0]	Building Block	Aggregate Block	A Block Member is an Aggregate Member that aggregates its releated Building Block by reference (see Referencing Relationship).Block Members are used to build network structures of Building Blocks while Hierarchical Members are used to build hierarchical structures of Building Blocks.

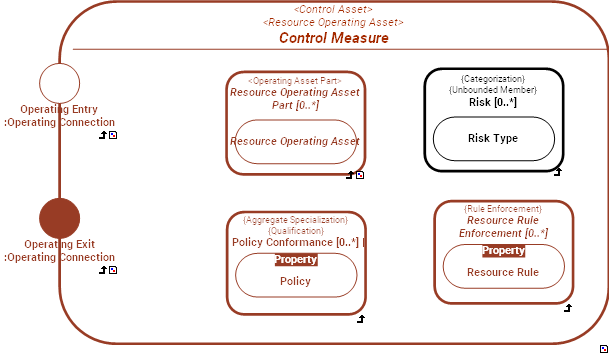

TEXTUAL SYNTAX

SEMANTIC TAXONOMY

Sub-Types Super-Types
