CLASS OF CLASS OF CONNECTION - Resource Event

Description

Abstract Concept
A Resource Event is a Behavioral Event produced and consumed by Resource Behaviors.

Functional Domain: SOF - Resource System Operating Pattern (R-SOF)

The SOF - Resource System Operating Pattern (R-SOF) domain is a conceptualization level that comprises abstract entities that belong to the physical space and comprise Human resources, Software resources, Hardware resources and natural resources.

Super Types

Behavioral Event (from partition: Conceptualization Levels of Behavioral Event)

Resource Functional Asset (from partition: Structural Partition of Resource Functional Asset)

Dictionary

Dictionary of SysFEAT concepts

Conceptualization Levels

Resource

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Resource Event Consumtion	[*..0]	Resource Behavior	Resource Event
Resource Event Consumption	[*..0]	Resource Behavior	Resource Event
Specialized Functional Asset	[*..0]	Functional Asset	Functional Asset
Realized Functional Asset	[*..0]	Functional Asset	Functional Asset	A kind of specialization between an implementing Functional Asset and its abstract Realized Functional Asset.Realization relationships are the foundation to establish the mapping between Functional Assets that belong to different Conceptualization Levels.
Policy Conformance	[*..0]	Policy	Functional Asset	A Policy Conformance is the conformity requirement that applies a Functional Asset.
Risk	[*..0]	Risk Type	Functional Asset	A Risk refers to the potential for loss resulting from inadequate structure or behavior of a Functional Asset.
Connection End	[*..0]	Bounded Aggregate	Ordering Connection
Connection Member	[*..0]	Ordering Connection	Ordering Connection
Hierarchical Member	[*..0]	Building Block	Aggregate Block	A Hierarchical Member is an Aggregate Member that is also a Block Lexical Scope for the Building Block it aggregates: it relates its aggregated block by nesting (see Nesting Relationship).Hierarchical Members are used to build hierarchical structures of Building Blocks, in constrast to Block Members which are used to build network structures of Building Blocks.
Block Member	[*..0]	Building Block	Aggregate Block	A Block Member is an Aggregate Member that aggregates its releated Building Block by reference (see Referencing Relationship).Block Members are used to build network structures of Building Blocks while Hierarchical Members are used to build hierarchical structures of Building Blocks.
Start Type	[*..0]	Temporal Bounding Type	Class of Bounded Individual
End Type	[*..0]	Temporal Bounding Type	Class of Bounded Individual
Temporal Sequencing Type	[*..0]	Temporal Bounding Type	Class of Bounded Individual
Aggregate Composition Type	[*..0]	Class of Bounded Individual	Class of Bounded Individual	An Aggregate Composition Type is a reified flavor of Composition Type whereby the referenced Class of Individual is aggregated in its parent (whole) Class of Bounded Individual.Example:1) A Process Step is the reification of the composition of a child process in a parent process.2)
Border	[*..0]	Ordering Connection	Bounded Aggregate

TEXTUAL SYNTAX

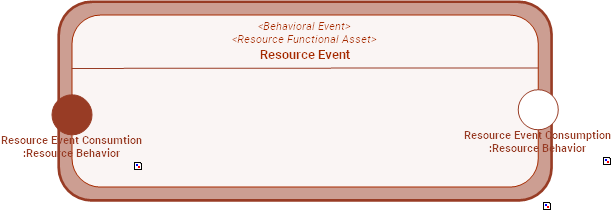

CONNECTION DIAGRAM

../images/6a70c0c8678769d3_6a70c22e67876d7f_i.png

CONNECTION ENDS

	Name	Type	Super Type	Description
Source End	Resource Event Consumtion	Resource Behavior	Behavioral Event::Predecessor
Target End	Resource Event Consumption	Resource Behavior	Behavioral Event::Successor

SEMANTIC TAXONOMY

Sub-Types Super-Types

Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.
