CLASS OF CLASS OF INDIVIDUAL - Software Deployment Environment

Description

Abstract Concept

A Software Deployment Environment describes a possible integration context for a Software Deployment Architecture.

It contains the subject Business Software System deployment architecture and the partner deployment architectures it must be integrated with, meaning it must communicates with via technical connections (with communication protocols, port numbers...).

Functional Domain: Application Deployment Architecture

The Application Deployment Architecture domain defines concepts used to organize Applications in Deployable Packages.

Super Types

Agent Environment

Dictionary

Dictionary of SysFEAT concepts

Lexical Scope

Architecture Container

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Technical Service Channel	[1..1]	Technology Interface	Software Deployment Environment
Operating Technical Artifact	[*..0]	Concrete Software System	Software Deployment Environment
Subject Technical Artifact	[1..1]	Concrete Software System	Software Deployment Environment
Partner Technical Artifact	[*..0]	Concrete Software System	Software Deployment Environment
Specialized Operating Environment	[*..0]	Agent Environment	Agent Environment
Realized Operating Environment	[*..0]	Agent Environment	Agent Environment
Specialized Functional Asset	[*..0]	Functional Asset	Functional Asset
Policy Conformance	[*..0]	Policy	Functional Asset	A Policy Conformance is the conformity requirement that applies a Functional Asset.
Risk	[*..0]	Risk Type	Functional Asset	A Risk refers to the potential for loss resulting from inadequate structure or behavior of a Functional Asset.
Hierarchical Member	[*..0]	Building Block	Aggregate Block	A Hierarchical Member is an Aggregate Member that is also a Block Lexical Scope for the Building Block it aggregates: it relates its aggregated block by nesting (see Nesting Relationship).Hierarchical Members are used to build hierarchical structures of Building Blocks, in constrast to Block Members which are used to build network structures of Building Blocks.
Block Member	[*..0]	Building Block	Aggregate Block	A Block Member is an Aggregate Member that aggregates its releated Building Block by reference (see Referencing Relationship).Block Members are used to build network structures of Building Blocks while Hierarchical Members are used to build hierarchical structures of Building Blocks.
Start Type	[*..0]	Temporal Bounding Type	Class of Bounded Individual
End Type	[*..0]	Temporal Bounding Type	Class of Bounded Individual
Temporal Sequencing Type	[*..0]	Temporal Bounding Type	Class of Bounded Individual
Aggregate Composition Type	[*..0]	Class of Bounded Individual	Class of Bounded Individual	An Aggregate Composition Type is a reified flavor of Composition Type whereby the referenced Class of Individual is aggregated in its parent (whole) Class of Bounded Individual.Example:1) A Process Step is the reification of the composition of a child process in a parent process.2)
Dependency Relationship	[1..1]	Entity	Entity	A Dependency Relationship is a Relationship that specifies the existential dependency of the sourceRelationship on its target Relationship.The cardinality to the target Entity is [1..1].

SERIALIZATION FORMAT

TEXTUAL SYNTAX RDF

File: 108442775fce4918.rdf

SEMANTIC TAXONOMY

Sub-Types Super-Types

Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.

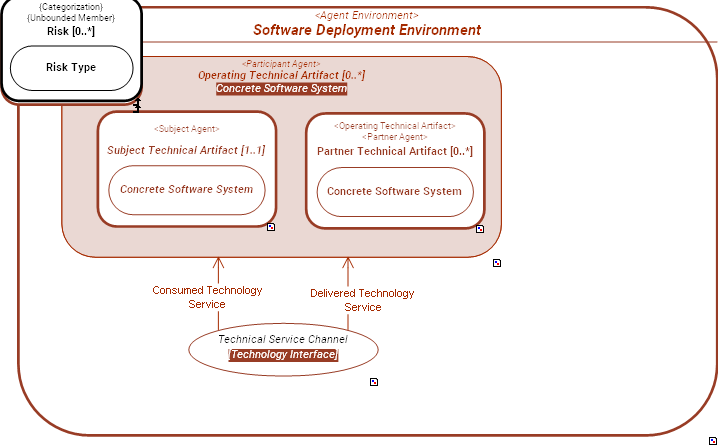

INTERNAL STRUCTURE

../images/108442775fce4918_108442c35fce49ce_i.png

CONNECTORS

Connector	Source	Target	Connector Type	Description
Technical Service Channel	Operating Technical Artifact. Technology Request Point	Operating Technical Artifact. Technology Service Point	Technology Interface	Abstract Connection
