BUILDING BLOCK - Deployable Application Package

Description	A Deployable Application Package is a split of application code according to deployment criteria at runtime. For example, it may be Front End/Back End or GUI/Business Logic etc.. Each Deployable Application Package is associated to required Software Technology(ies) (for running) and can host code of several Application Component. Architects can also prescribe a kind of hosting artefact (IaaS/PaaS cloud service or IT server model).
External references	C4 Model - Level 2 - Container Diagram
Super Types	Deployable Package
Functional Domain	Application Deployment Architecture The Application Deployment Architecture domain defines concepts used to organize Applications in Deployable Packages.
Dictionary	Dictionary of SysFEAT concepts
Framework Mapping	C4 Model Mappings : Container Mobile App, Web Browser

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

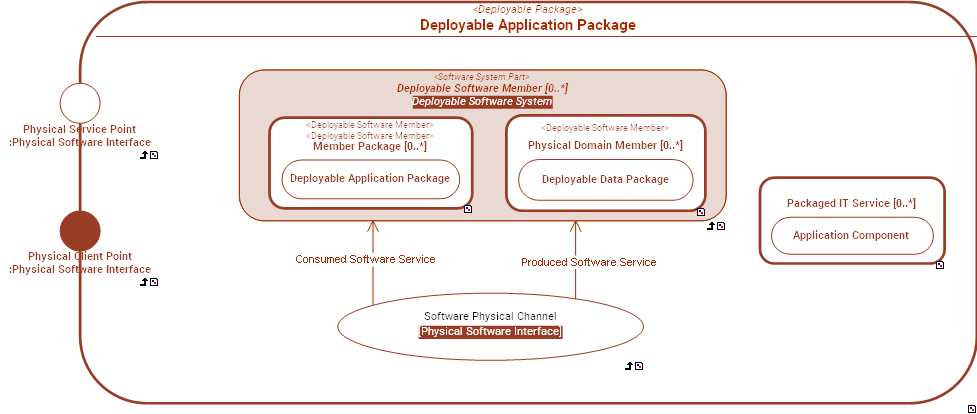

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Packaged IT Service	[*..0]	Application Component	Deployable Application Package	A Packaged IT Service is a configuration of an Application Component in a Deployable Application Package according to deployment and runtime requirements.
Member Package	[*..0]	Deployable Application Package	Deployable Application Package
Physical Domain Member	[*..0]	Deployable Data Package	Deployable Application Package
Specialized Package	[*..0]	Deployable Package	Deployable Package
Packaged Application	[1..1]	Application	Deployable Package
Required Software Technology	[*..0]	Software Technology	Deployable Package
Specialized Business Operating Agent	[*..0]	Resource Agent	Resource Agent

TEXTUAL SYNTAX

SEMANTIC TAXONOMY

Sub-Types Super-Types

Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.

BORDERS

Name	Super type	Border Type	Description
Physical Client Point	Technology System::Technology Request Point	Physical Software Interface	A technical output port is a point that allows asking to open a communication line from a technical architecture or an application technical area and that complies with a specified communication protocol (SMTP, HTTP, etc.).
Physical Service Point	Technology System::Technology Service Point	Physical Software Interface	A Physical Service Point is a connection point allowing opening a communication to a technical architecture or an application technical area that complies with a specified communication protocol (SMTP, HTTP, etc.).
