CONCEPT DOMAIN - Measurement
| Description | |
|---|---|
| Dictionary |
Dictionary of SysFEAT patterns |
| Parent Domain | |
| Domain dependencies |
Architecture Packages
Teams Pattern |

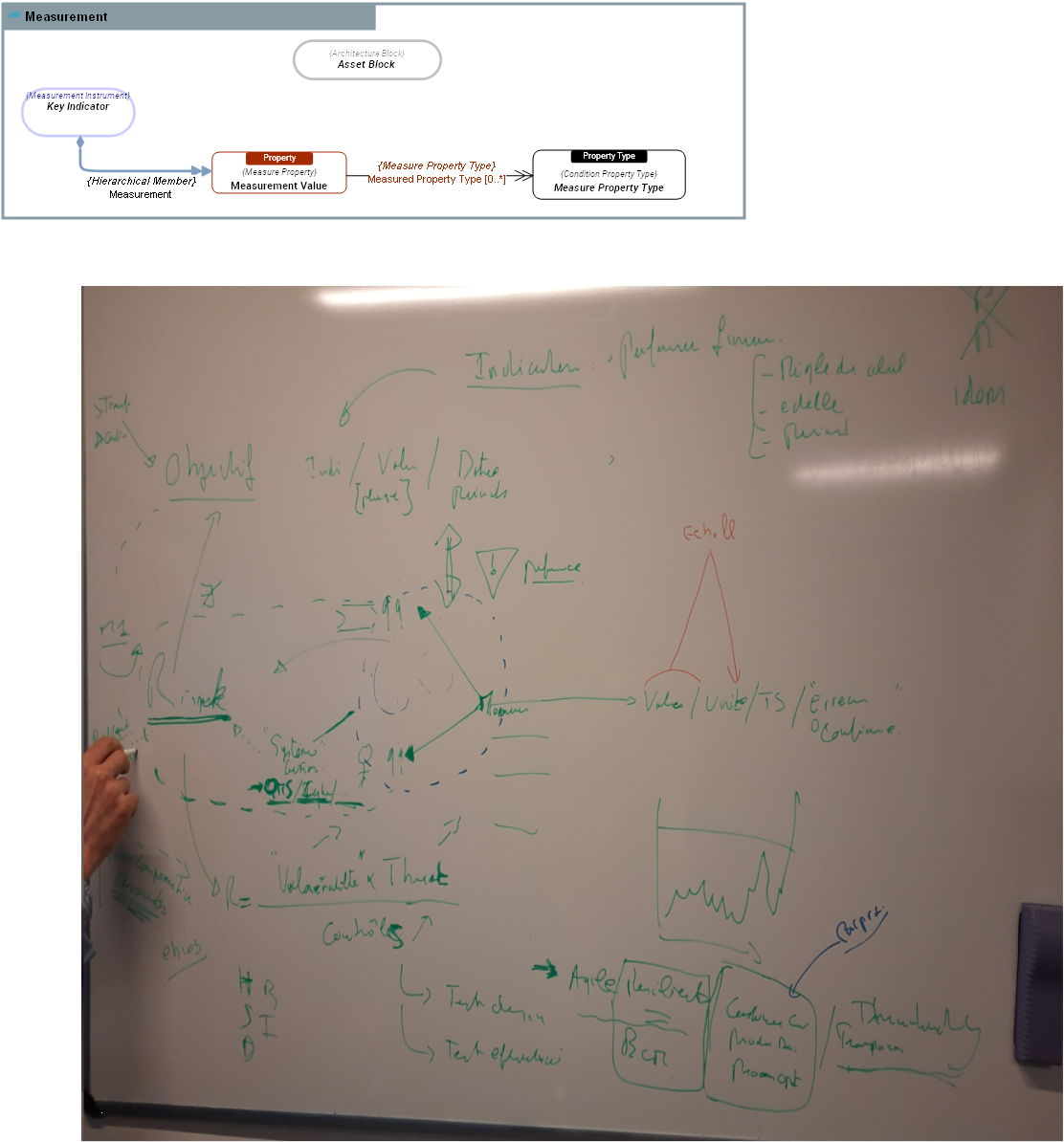

DOMAIN CONCEPT GRAPH
Diagram Graph
CONCEPT DESCRIPTIONS
Concrete Concepts
| Concept | Description |
|---|---|
Measurement Value |
A Measurement Value is the value of Measure Property Type that result from a Measurement, at specific point in time in the context of a Key Indicator. A Measurement Value is always nested by its Measurement. |
Abstract Concepts
| Concept | Description |
|---|---|
Asset Block |
An Asset Block is an Architecture Block used to describe the System Operating Framework - SOF of the enterprise and its systems. |
Key Indicator |
A Key Indicator is a collection of Measurement of Architecture Property regarding the valuation, over time, of a Measure Property Type that qualifies a specific Asset Block. |
Measure Property Type |
A Measure Property Type is a Condition Property Type that expresses a type of measurement (Time, Mass, Cost, ..) and define the units used for measures (minutes, kg, euros, etc.). Examples: - Time to deliver in minutes. - Delivery cost in kilo Euros. Condition Property Types are described by Measure Unit: kg, Liter, Gallon, Hour, Minute. Condition Property Types are used to constrain Asset Blocks in the context of non-functional requirement analysis and Value Proposition analysis. |
OMG - UAF - UAFElement
