BUILDING BLOCK - Physical Data Entity

Description	Abstract Concept A Physical Data Entity is a representation the physical structure of a Data Entity as it will be stored in a DBMS. A Physical Data Entity has an independent existence and can be uniquely identified. A Physical Data Entity is characterized by Physical Relationships it has with other Physical Data Entity(ies) and by Physical Data Property(ies).
External references	DDD - Glossary - Entity
Super Types	Data Entity Physical Data Asset
Functional Domain	EA Pattern - Physical Data Domain The EA Pattern - Physical Data Domain comprises abstract concepts used to describe the physical structure of Data Assets.
Dictionary	Dictionary of SysFEAT concepts
Lexical Scope	Architecture Container Data Dictionary
Framework Mapping	TOGAF - Enterprise Metamodel Mapping : Physical Data Entity

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Specialized Physical Entity	[*..0]	Physical Data Entity	Physical Data Entity
Physical Data Slot	[*..0]	Physical Data Property	Physical Data Entity
Physical Relationship	[*..0]	Physical Data Entity	Physical Data Entity
Realized Data Asset	[*..0]	Data Asset	Physical Data Asset
Realized Concept	[*..0]	Domain Asset	Data Asset	Data Domains that the Data Asset is an implementation of.
Specialized Class of Bounded Individual	[*..0]	Class of Bounded Individual	Class of Bounded Individual
Qualification	[*..0]	Property	Class of Bounded Individual	A specialization from a Class of Bounded Individual to a Property that asserts all members of the Class of Bounded Individual have the Property.
Start Type	[*..0]	Temporal Bounding Type	Class of Bounded Individual
End Type	[*..0]	Temporal Bounding Type	Class of Bounded Individual
Temporal Sequencing Type	[*..0]	Temporal Bounding Type	Class of Bounded Individual
Realized Functional Asset	[*..0]	Functional Asset	Functional Asset	A kind of specialization between an implementing Functional Asset and its abstract Realized Functional Asset.Realization relationships are the foundation to establish the mapping between Functional Assets that belong to different Conceptualization Levels.
Policy Conformance	[*..0]	Policy	Functional Asset	A Policy Conformance is the conformity requirement that applies a Functional Asset.
Hierarchical Member	[*..0]	Building Block	Aggregate Block	A Hierarchical Member is an Aggregate Member that is also a Block Lexical Scope for the Building Block it aggregates: it relates its aggregated block by nesting (see Nesting Relationship).Hierarchical Members are used to build hierarchical structures of Building Blocks, in constrast to Block Members which are used to build network structures of Building Blocks.
Block Member	[*..0]	Building Block	Aggregate Block	A Block Member is an Aggregate Member that aggregates its releated Building Block by reference (see Referencing Relationship).Block Members are used to build network structures of Building Blocks while Hierarchical Members are used to build hierarchical structures of Building Blocks.

TEXTUAL SYNTAX

SEMANTIC TAXONOMY

Sub-Types Super-Types

Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.

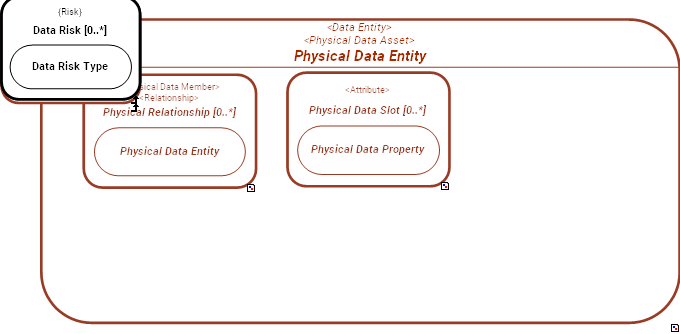

INTERNAL STRUCTURE
