BUILDING BLOCK - Application System Deployment Architecture
| Description | An Application System Deployment Architecture describes one possible deployment configuration of an Application System. It contains chosen deployment architectures for component applications and identifies communication protocols (and port numbers) they use to communicate with each other. |
|---|---|
| External references |
 C4 Model - Level 1 - System Context Diagram |
| Super Types |
Software Deployment Architecture |
| Dictionary |
Dictionary of SysFEAT concepts |
RELATIONSHIPS
Simple Graph Graph & Inheritance Table
Simple Graph
Composition: ➝ Classification: ➝ Specialization: ➝ Enumerated definition: ➝ Syntax: ➝
TEXTUAL SYNTAX
SEMANTIC TAXONOMY
Sub-Types Super-Types
Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.
BORDERS
| Name | Super type | Border Type | Description |
|---|---|---|---|
| Physical Client Point |
Technology System::Technology Request Point |
Physical Software Interface | A technical output port is a point that allows asking to open a communication line from a technical architecture or an application technical area and that complies with a specified communication protocol (SMTP, HTTP, etc.). |
| Physical Service Point |
Technology System::Technology Service Point |
Physical Software Interface | A Physical Service Point is a connection point allowing opening a communication to a technical architecture or an application technical area that complies with a specified communication protocol (SMTP, HTTP, etc.). |

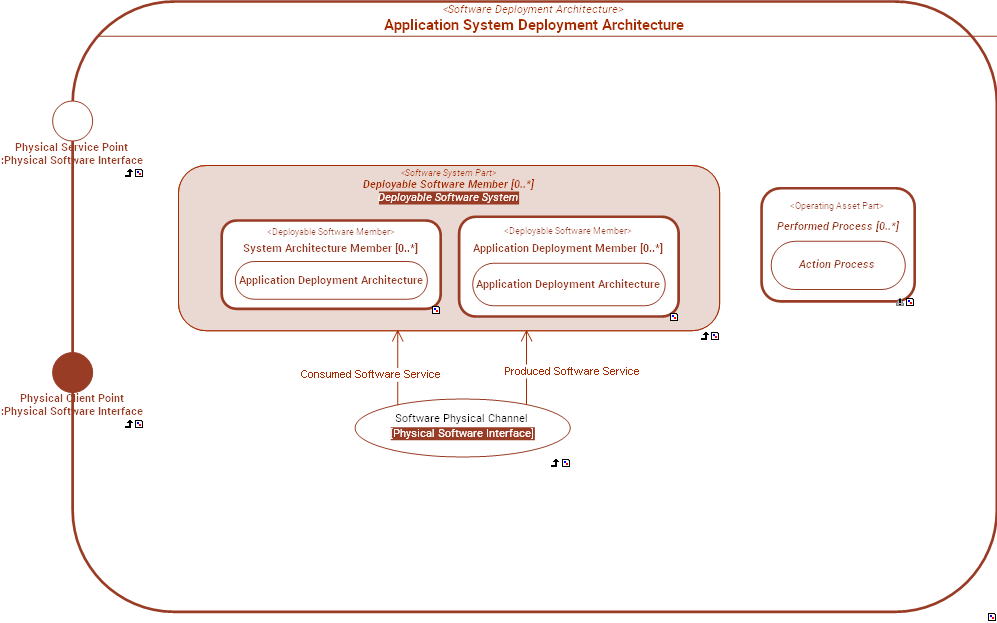

INTERNAL STRUCTURE
