BUILDING BLOCK - Data Map

Description	Abstract Concept A Data Map is an urbanization tool for Data Asset. It represents a set of Data Domains in a particular context.
Super Types	Data Block Information Map
Functional Domain	EA Pattern - Data Domain The EA Pattern - Data Domain comprises abstract concepts used to describe the logical and physical structure of Information Assets.
Dictionary	Dictionary of SysFEAT concepts
Lexical Scope	Data Dictionary

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Data Domain Member	[*..0]	Data Domain	Data Map	Data Domain that isa component of a Data Map.
External Data Area	[*..0]	Data Domain	Data Map
Class of Relationship	[*..0]	Class of Entity Element	Class of Entity Element
Relationship Element	[*..0]	Entity Element	Entity Element	A Relationship Element is the reification of an Adjacency List as an Element that represents a relationship.It formalizes relationships betwen Entity Elements.
Referencing Relationship	[*..0]	Entity Element	Entity Element	A Referencing Relationship is a Relationship Element that points at its target Entity Element through Reference Adjacency.
Dependency Relationship	[1..1]	Entity Element	Entity Element	A Dependency Relationship is a Relationship Element that specifies the existential dependency of the sourceRelationship Element on its target Relationship Element.The cardinality to the target Entity Element is [1..1].
Non-Dependency Relationship	[*..0]	Entity Element	Entity Element	A Non-Dependency Relationship is a Relationship Element that specifies that the existence the source Entity Element doesnt depend on the existence of its target Entity Element.The cardinality to the target Entity Element is [0..*].

TEXTUAL SYNTAX

SEMANTIC TAXONOMY

Sub-Types Super-Types

Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.

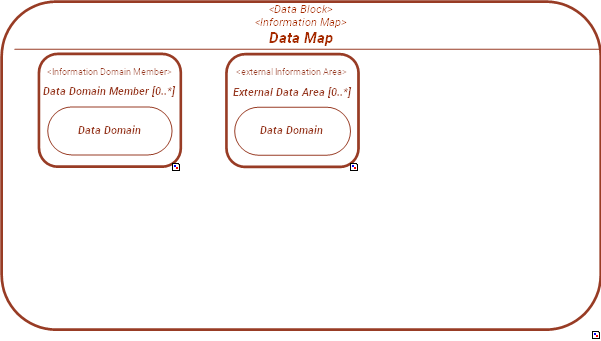

INTERNAL STRUCTURE
