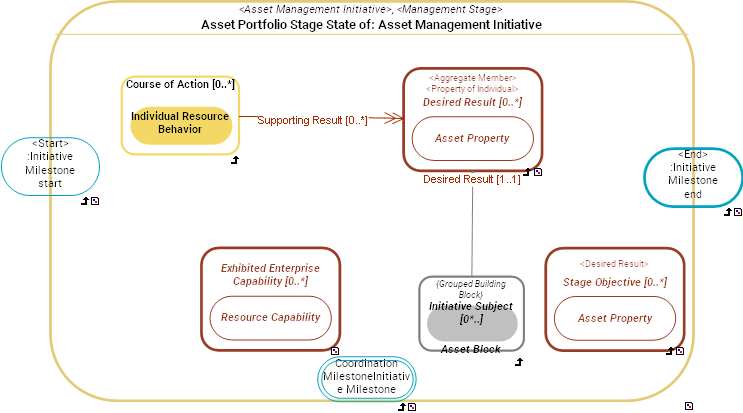

BUILDING BLOCK - Asset Portfolio Stage

Description	Abstract Concept An Asset Portfolio Stage is a past, current or future state of an Asset Portfolio. Each Asset Portfolio represents an initiative comprising a purposeful set of activities whose primary purpose is focused on achieving a set of clearly defined objectives assigned to assets managed in the Asset Portfolio. It may transcend organisational boundaries and consequently require integrated team working under the direction of a Management Team.
Super Types	Asset Management Initiative Asset Management Initiative (from partition: Structural Partition of Asset Management Initiative) Management Stage
Dictionary	Dictionary of SysFEAT concepts
Lexical Scope	Model Lexical Scope Model Container

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Exhibited Enterprise Capability	[*..0]	Resource Capability	Asset Portfolio Stage
Aggregate Composition	[*..0]	Bounded Individual	Bounded Individual	Aggregate Composition is a reified Composition (Whole/Part) where the composed Individual becomes a Composite Member of the whole Bounded Individual.
Temporal Sequencing	[*..0]	Temporal Bounding	Bounded Individual
Bounded Member	[*..0]	Bounded Aggregate	Aggregate Entity Block	A Bounded Member is an Entity Member that aggregates a Bounded Aggregate.Bounded Members can be related by means of Connectors which connect an Exit Border of a source Bounded Member to a corresponding Entry Border of a target Bounded Member.
Unbounded Member	[*..0]	Unbounded Aggregate	Aggregate Entity Block	An Unbounded Member is an Entity Member of an Aggregate Entity Block that aggregates an Unbounded Aggregate.Because Entity Members do not have borders, Unbounded Members cannot be related by Connection Relationships (see Bounded Aggregate).
Hierarchical Member	[*..0]	Building Block	Aggregate Block	A Hierarchical Member is an Aggregate Member that is also a Block Lexical Scope for the Building Block it aggregates: it relates its aggregated block by nesting (see Nesting Relationship).Hierarchical Members are used to build hierarchical structures of Building Blocks, in constrast to Block Members which are used to build network structures of Building Blocks.
Block Member	[*..0]	Building Block	Aggregate Block	A Block Member is an Aggregate Member that aggregates its releated Building Block by reference (see Referencing Relationship).Block Members are used to build network structures of Building Blocks while Hierarchical Members are used to build hierarchical structures of Building Blocks.

TEXTUAL SYNTAX

SEMANTIC TAXONOMY

Sub-Types Super-Types

Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.

BORDERS

Name	Super type	Border Type
Coordination Milestone		Initiative Milestone
end	Bounded Individual::End	Initiative Milestone
end	Bounded Individual::End	Initiative Milestone
end	Bounded Individual::End	Initiative Milestone
start	Bounded Individual::Start	Initiative Milestone
start	Bounded Individual::Start	Initiative Milestone
start	Bounded Individual::Start	Initiative Milestone
