CLASS OF CLASS OF INDIVIDUAL - Logical Data Asset

Description	Abstract Concept A Logical Data Asset is a Data Asset used for the description of data consumed and produced by Logical Software Systems. Logical Data Assets are defined in Logical Data Dictionary(ies).
Super Types	Data Block
Dictionary	Dictionary of SysFEAT concepts
Lexical Scope	Data Dictionary

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Relation	[*..0]	Entity	Entity	Abstract Relationship A Relation is the reification of a Linkage of the Predication Substrate, as an Element that represents a directed connection between a source Entity and a target Entity.Relations are nested within their source Entity. (principle of locality).
Reference Relation	[*..0]	Entity	Entity	Abstract Relationship A Reference Relation is a Relation that points at its target Entity through Reference Adjacency.
Existential Dependency	[1..1]	Entity	Entity	Abstract Relationship An Existential Dependency relationship is a Relation where the source Entitys existence depends on the existence of the target Entity.The cardinality of the set of targetted Entity is [1..1].
Existential Independence	[*..0]	Entity	Entity	Abstract Relationship An Existential Independence relationship is a Relation that specifies that the existence the source Entity doesnt depend on the existence of its target Entity.The cardinality of set set of targetted Entity is [0..*].

LOGICAL FORMULATION

LOGIC-AGDA RDF

File: fd1bf2a45fbc64fb.agda

File: fd1bf2a45fbc64fb.rdf

SEMANTIC TAXONOMY

Sub-Types Super-Types

SUB-TYPES

Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.

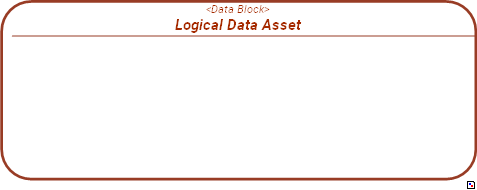

INTERNAL STRUCTURE

../images/fd1bf2a45fbc64fb_78e263956312fe53_i.png
